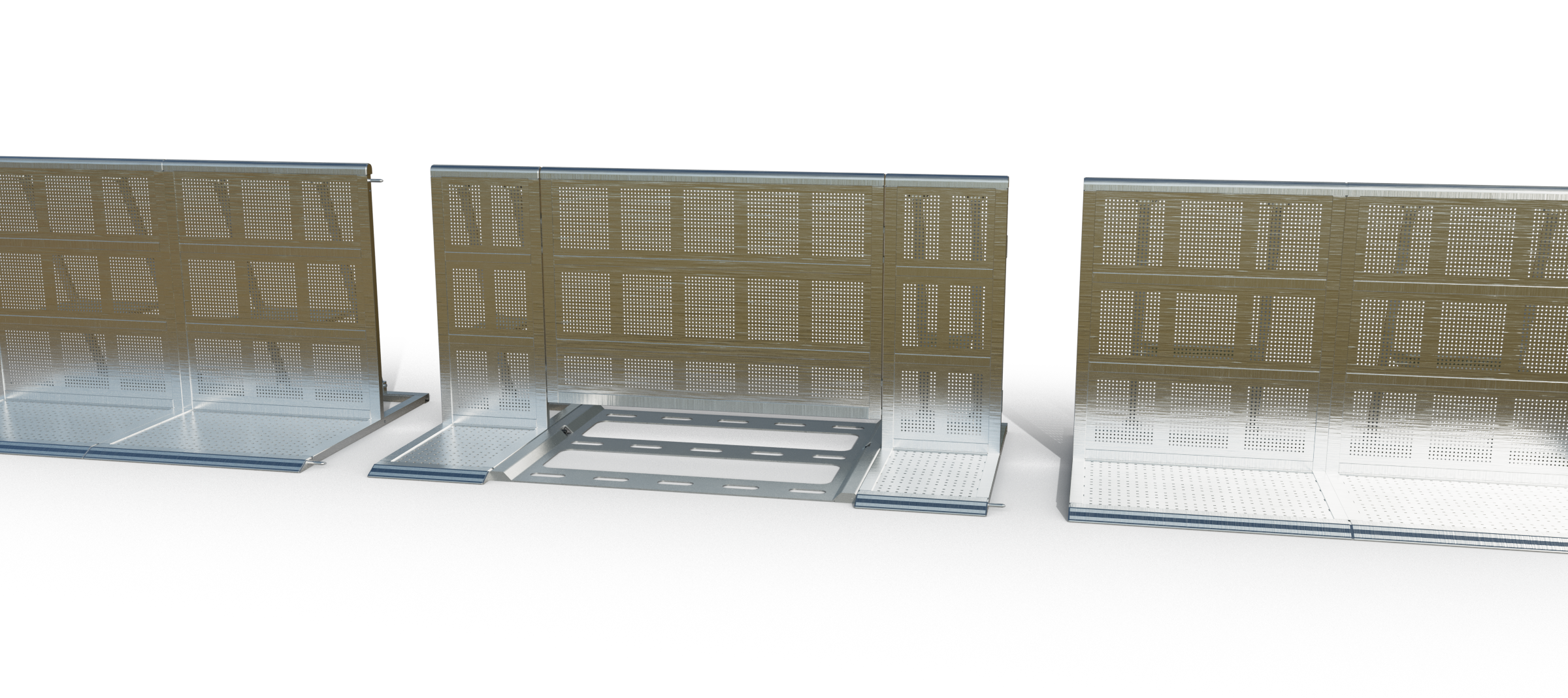

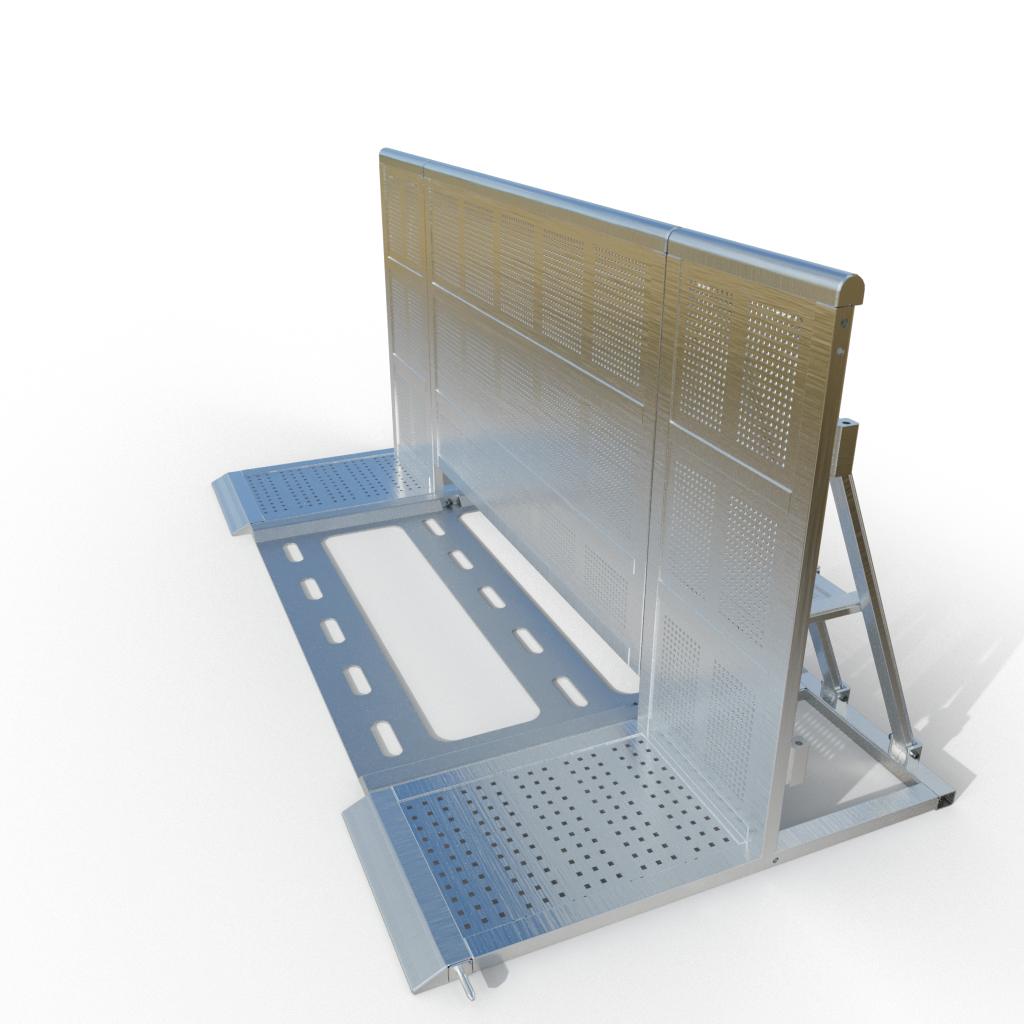

- A welded galvanized steel floor and aluminium upright with four heavy-duty hinges in between two straight half sections
- Straight half section specs are provided on a separate sheet

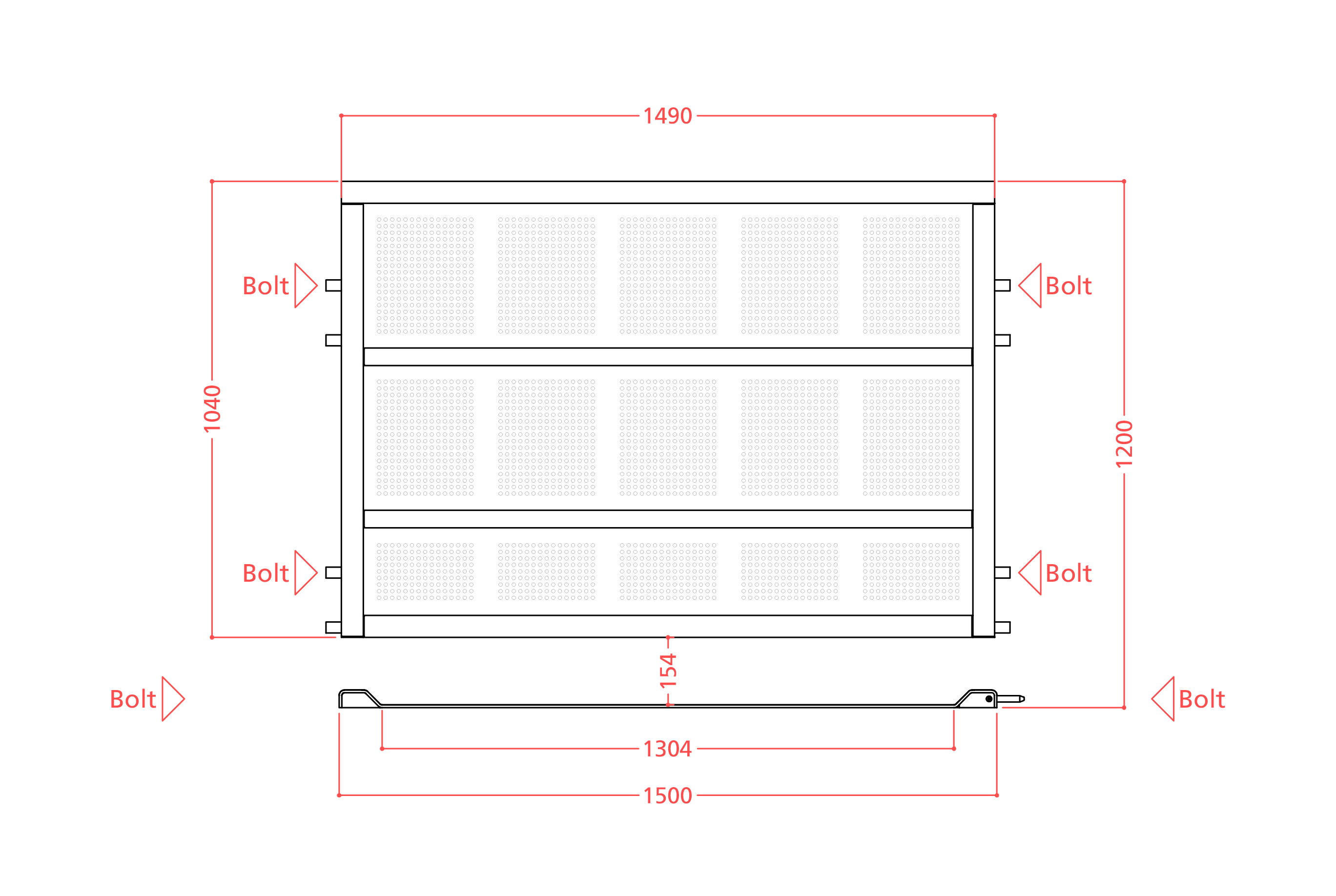

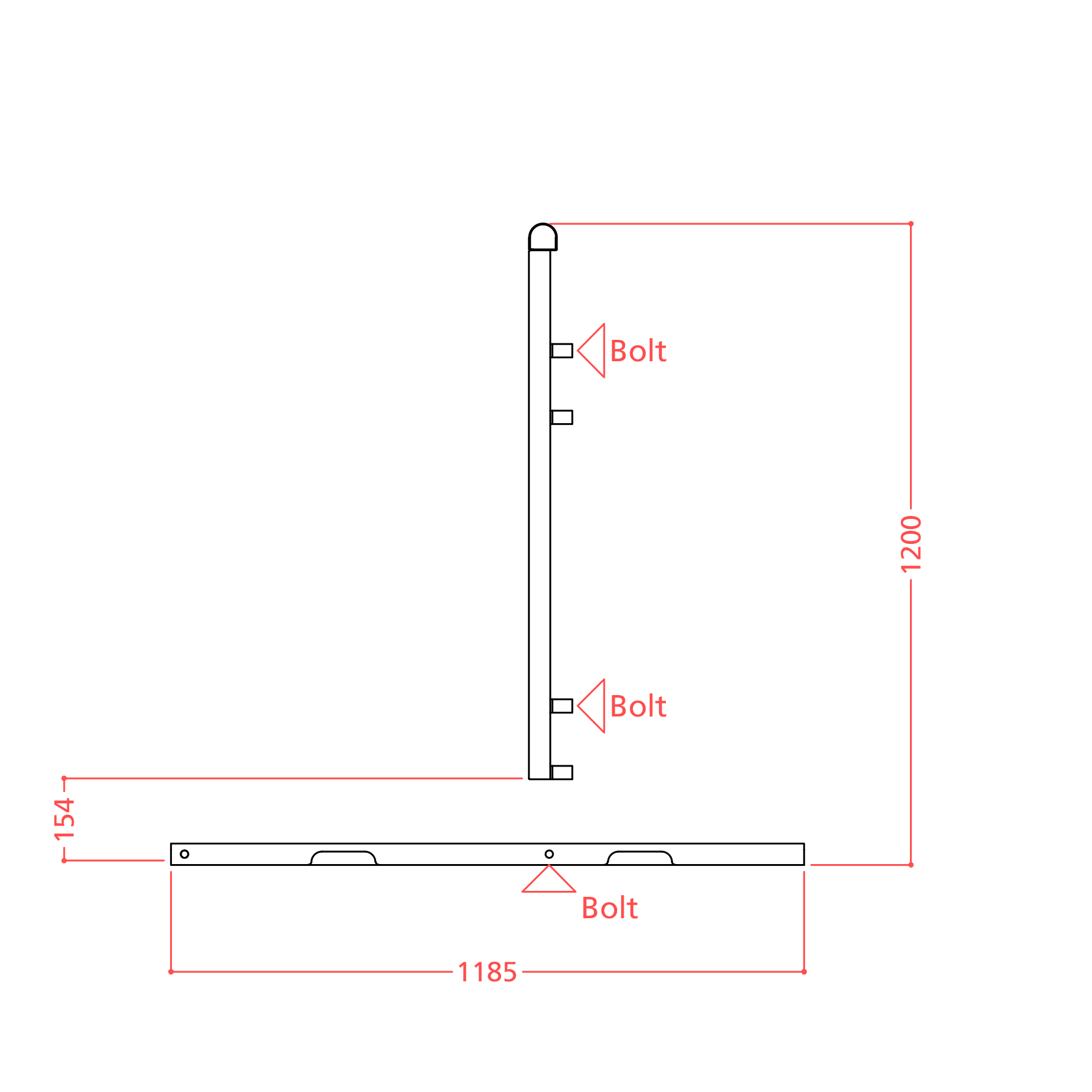

- A treadplate measures 1500mm wide and 1185mm deep, the upright measures 1490mm wide and 1040mm high
- One set measures 2500mm wide, 1250mm deep and 1200mm high
- A rounded top rail and welded end caps for the audience’s comfort & and safety
- Bottom pin provides for easy setup and alignment

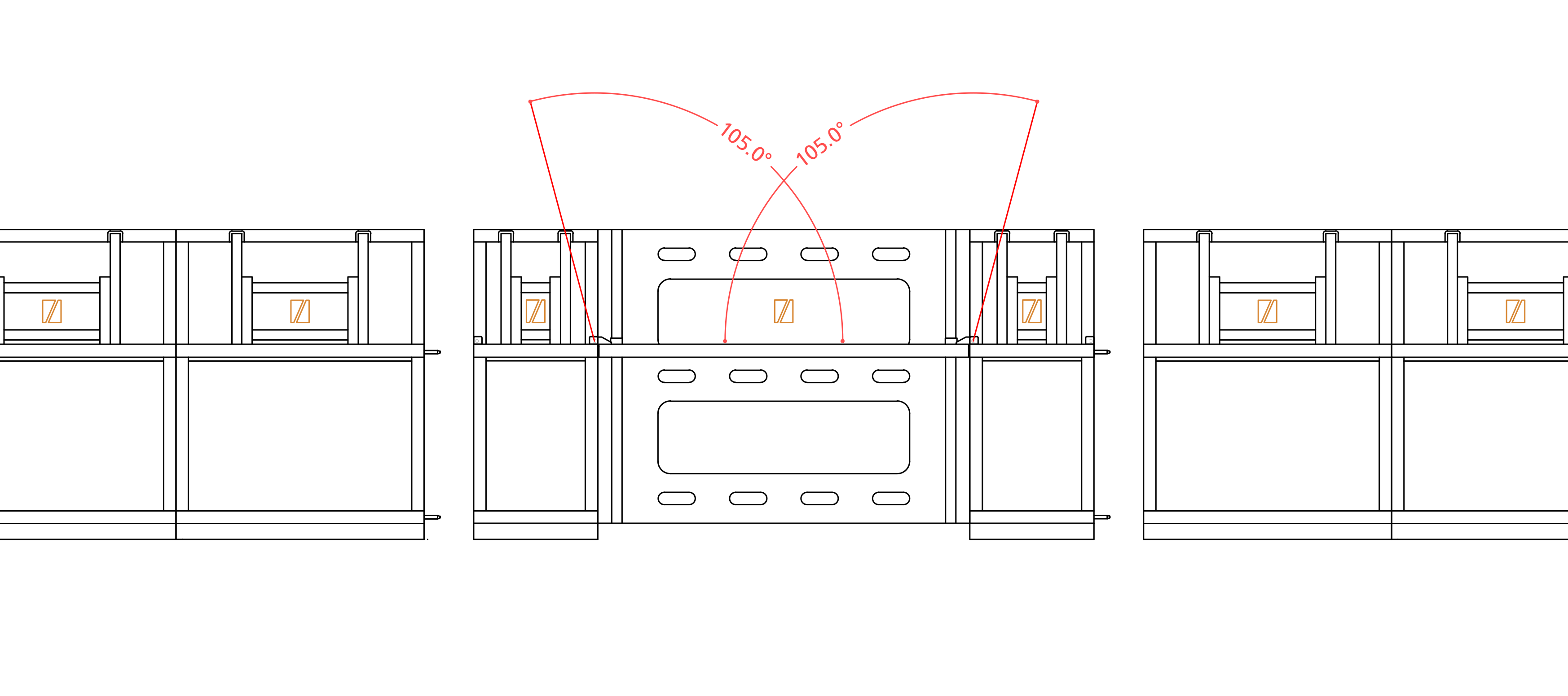

- The upright connects to the hinges by four standard Dutch Barrier bolts. During setup, the crew may take out the upright completely or swivel it to either side
- The treadplate interconnects at the bottom on either side by one standard Dutch Barrier bolt
- Also available with black upright
- Weights: Floor 37,6kg, upright 22,6kg, half meter straight 24,0kg
- Stored and travel per 2 complete sets in a bespoke stainless steel dolly 1m50/3m00 GATE
- Use in high crowd pressure areas: ●●●●● 5/5
Subject to change.
This unit will be tested at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test will be available at Dutch Barrier & Dutch Barrier Services upon request.
