Dutch Barrier - DB Straight Section 1m00

DB Straight Section 1m00

Dutch Barrier’s straight section was the first to be redeveloped from the ground up. It provides a rock-solid crowd control solution in front of stages and other event locations that need safeguarding from excessive crowd pressures. They are stored and travel per 10 units in an all-new handling-friendly dolly system.

Download document

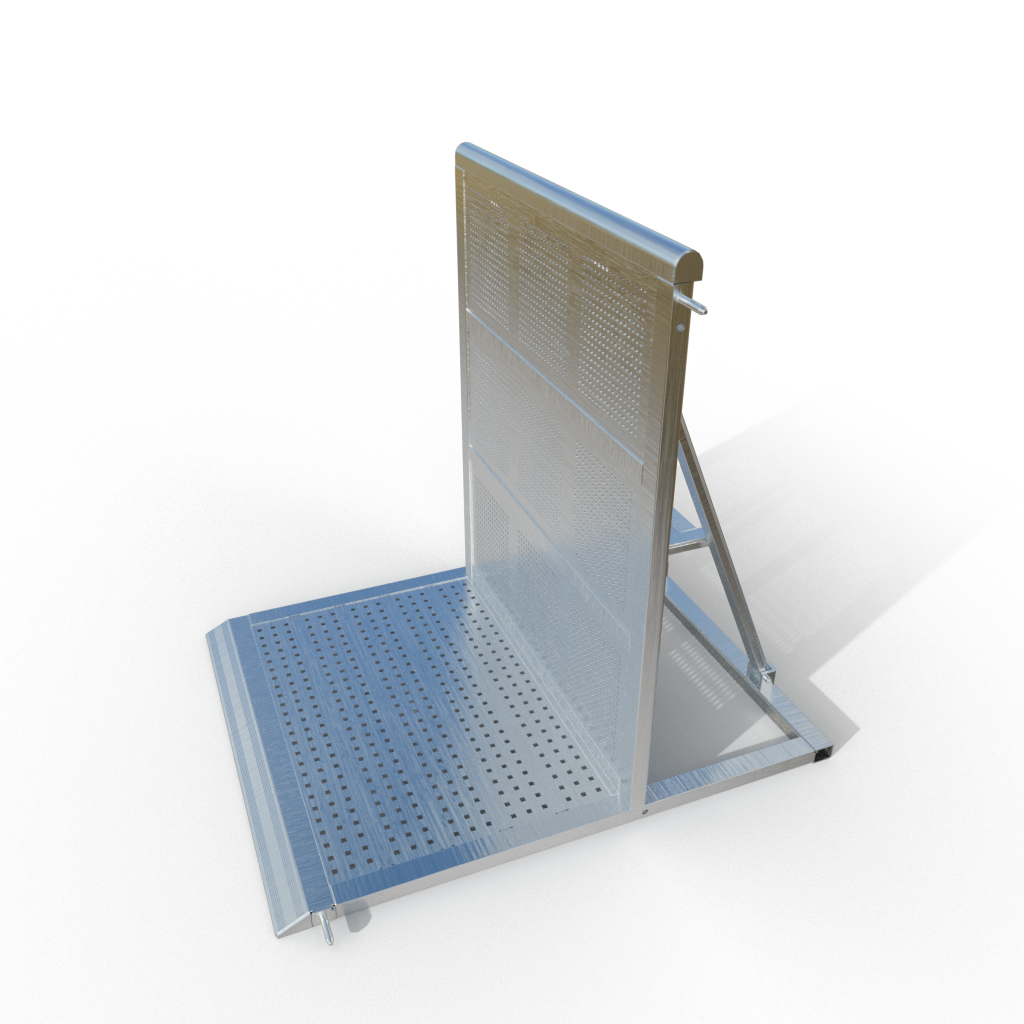

A solid (foldable) A-frame welded aluminium construction made out of bespoke extrusion profiles
One unit measures 1000mm wide, 1250mm deep and 1200mm high
A rounded top rail and welded end caps for the audience’s comfort & and safety
A punched tread plate prevents liquids from pooling
An elevated rear step gives security personnel better visibility and makes lifting people in distress over the barrier easier
Top and bottom pins provide for easy setup and alignment
Clever design enables handling without the risk of trapped fingers
Internal solid blocks allow for added strength and easy insertion of pins and bolts, as well as an improved lifespan of the whole unit
Locking lips maintain the unit’s upright stability in unbolted condition
Straight sections interconnect, under normal conditions, at the bottom on either side by one standard Dutch Barrier bolt
Also available with black upright, braces and step
Weight 35,4kg
Stored and travel per 10 units in a bespoke stainless steel dolly
Use in high crowd pressure areas: ●●●●● 5/5

Testing was done at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test are available at Dutch Barrier & Dutch Barrier Services upon request.
