DB Cable Gate 0m50

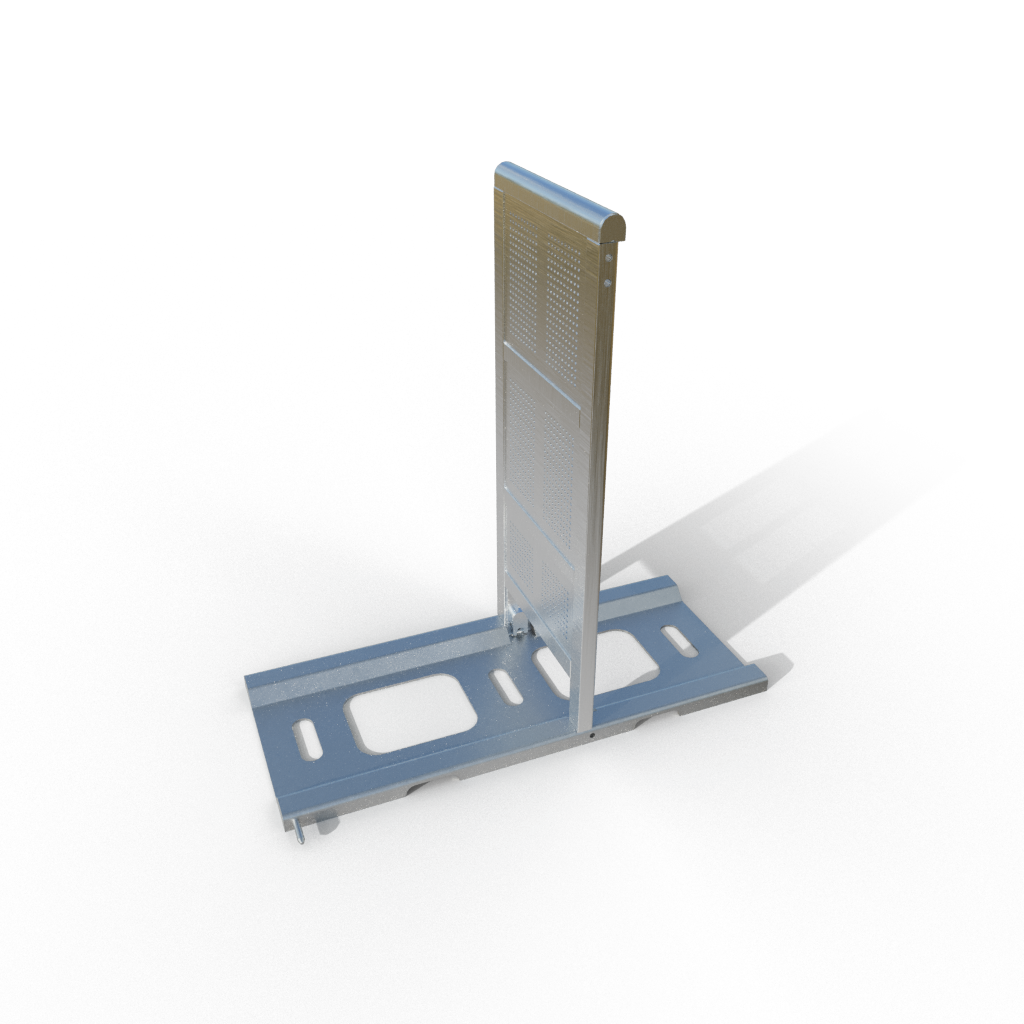

Dutch Barrier’s Cable Gate 0m50 consists of a treadplate with a removable upright. Unlike its larger 1m00 and 1m50 counterparts, it does not require half-straight sections on either side. It offers a compact, rock-solid crowd control solution wherever a small cable run is needed. When running cables or smaller cable ramps, simply remove the two top bolts to lift out the upright and create a clear passage. Images are for illustrative purposes only and may differ from actual setup. Images are for illustrative purposes only and may differ from actual setup.

Download document

A welded galvanized steel floor and aluminium upright
A treadplate measures 500mm wide and 1185mm deep, the upright measures 500mm wide and 1200mm high when assembled
A rounded top rail and welded end caps for the audience’s comfort & and safety
Bottom pin in treadplate and smart ‘locks’ at the bottom of the upright provide for easy setup and alignment
The upright connects to the adjoining barriers by two standard Dutch Barrier bolts. During setup, the crew may take out the upright
The treadplate interconnects at the bottom on either side by one standard Dutch Barrier bolt
Also available with black upright
Weights: Floor 26kg, upright 8,1kg
Use in high crowd pressure areas: ●●●●● 5/5

Testing was done at a minimum of 5kN/m pressure at the top rail, following and exceeding the Temporary Demountable Structures Edition 4 guidelines by the Institution of Structural Engineers (ISE). TUV reports for each test are available at Dutch Barrier & Dutch Barrier Services upon request.
